Generator Controller

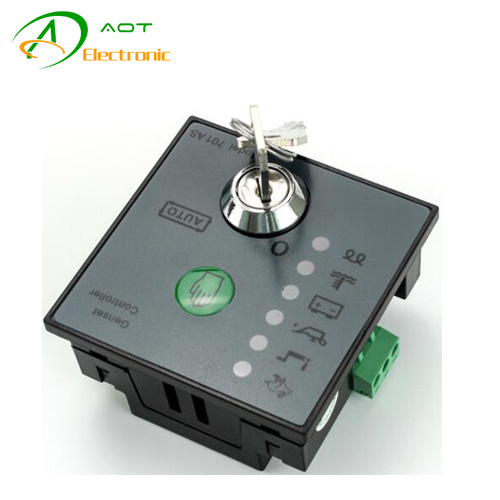

Automatic Intelligent Generator Controller DSE701

Model Number: DSE701
Place of Origin: China
Warranty: 1 year
In stock: yes
Product description: The model 701 is an Engine control module designed to control the engine via a key switch and push buttons on the front panel.
INQUIRY

*The model 701/702 is an Engine Control Module designed to control the engine via a key switch and push buttons on the front panel.

*The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation.

*Additionally,the Auto start versions of the controller will respond to a remote switched input to begin the start sequence.

*Model 702 has integral tamperproof LCD hours run counter to indicate total engine run time

Style	DSE701AS (Auto)
Power Supply	8 to 35 Vdc Continuous
Cranking Dropouts:	Able to survive voltage dips during cranking. Without The need for internal batteries.
Alternator Input Range	15 - 305 V AC RMS (+20%)
Alternator Input Frequency:	50 - 60 Hz at rated engine speed. (Minimum 75V AC) Over speed: nominal frequency +14% (+24% Overshoot)
Start Output:	Solid State 1.2A negative grounding terminal
Run Output:	Solid State 1.2A negative grounding terminal
Pre-heat Output:	Solid State1.2A negative grounding terminal
Operating Temperature Range:	-30 to +70°C
