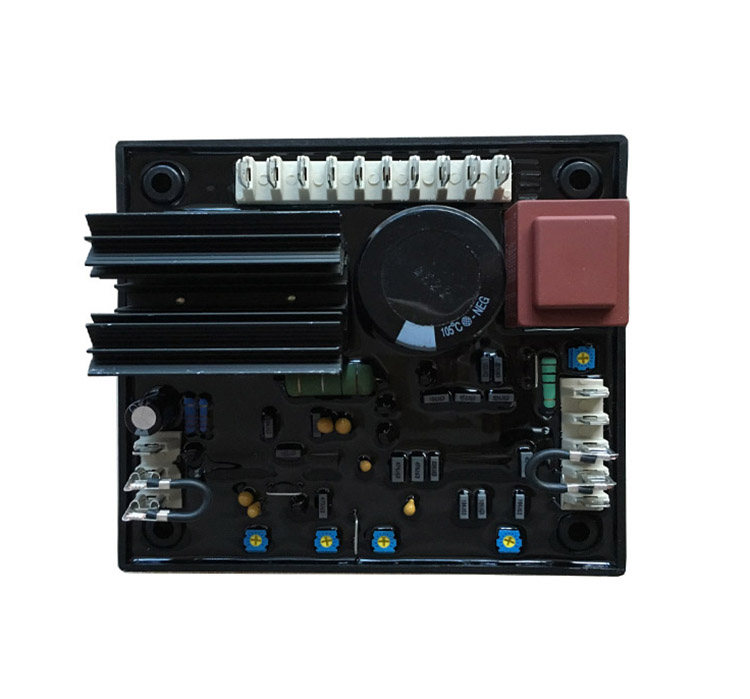

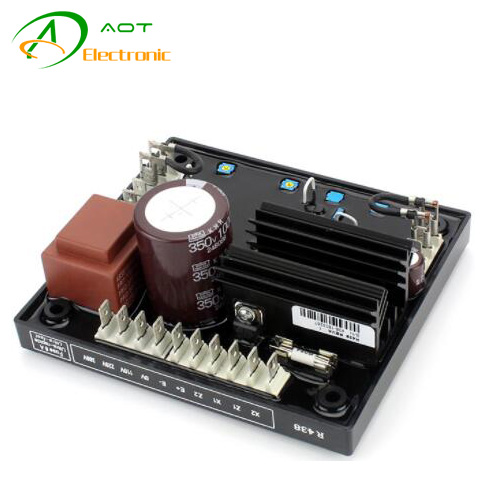

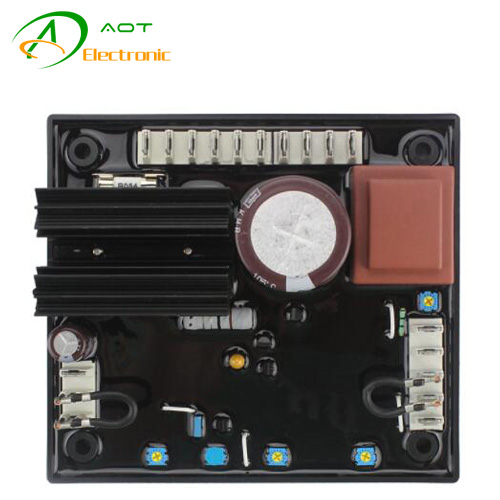

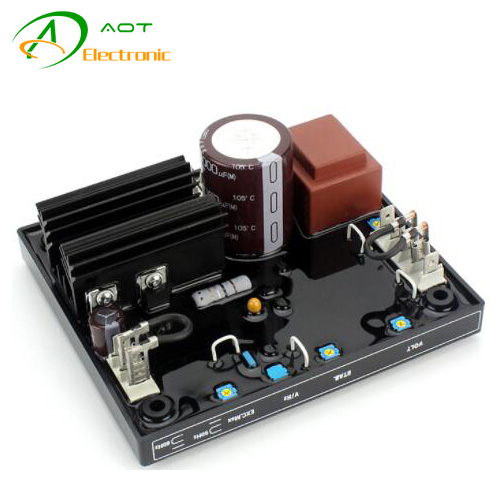

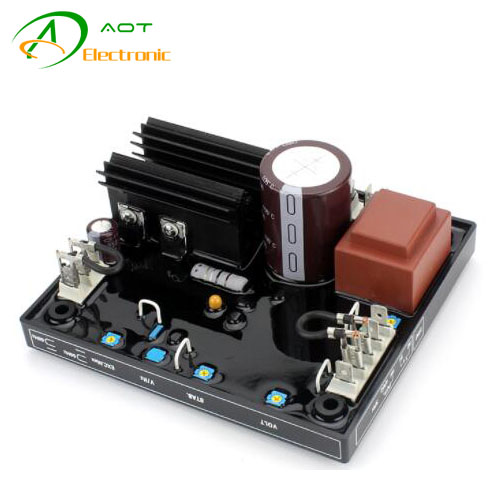

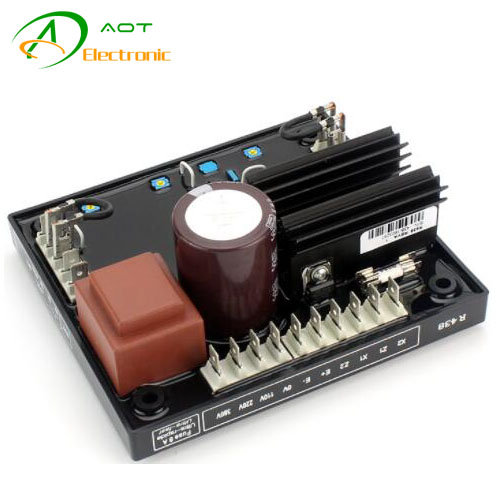

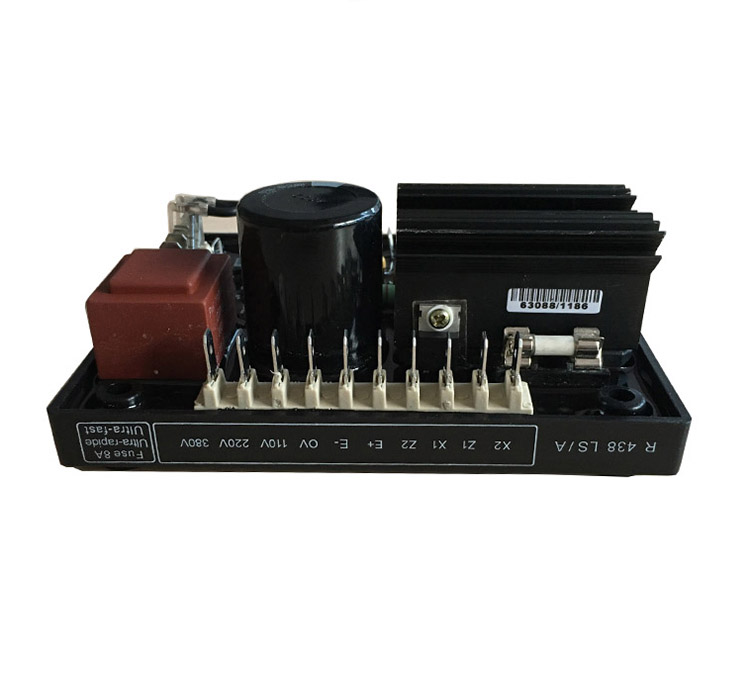

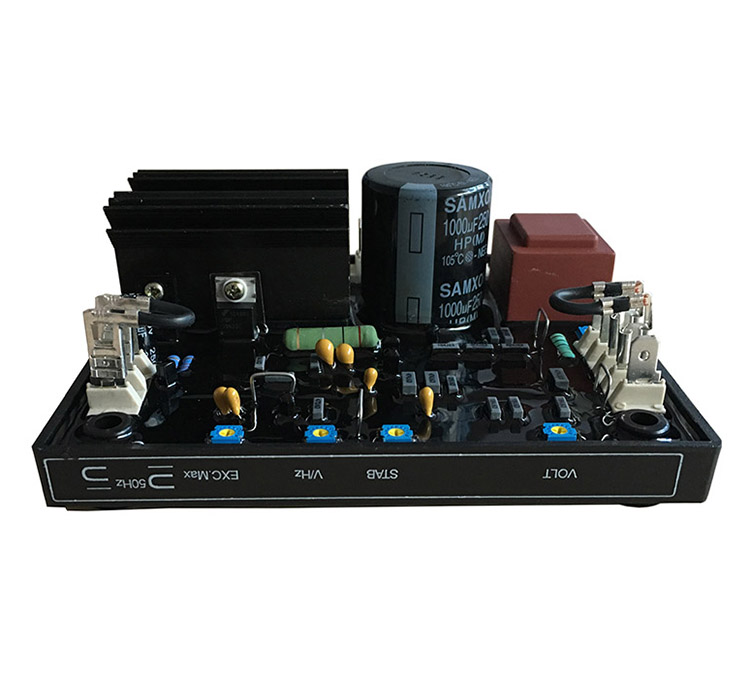

The 3-phase Generator AVR Automatic Voltage Regulator R438 AVR is powered by two auxiliary windings which are self-sufficient of the voltage match circuit, the first winding has a voltage in proportion to that of the alternator(characteristic shunt), the second has a voltage in proportion to the stator current(compound characteristic: booster effect). The power supply voltage is rectified and filtered before being used by the AVR monitoring transisitor.
1.itable for high levels of vibration and harsh environments
2.and overload current:8A-10s
3.ase to phase voltage sensing
4.andard power supply: AREP or PMG
|
Voltage Regulation |
±0.5% |
|
Remote voltage adjustment range |
±0.5% |
|
Short circuit capability |
3 x Irated for 10 seconds |
|
Standard power supply |
AREP or PMG |
|
Rated overload current |
8 A - 10 s |
|
Voltage sensing |
5 VA isolated via transforme |
|
0-110V terminals |
95 to 140V |
|
0-220V terminals |
170 to 260V |
|
0-380V terminals |
340 to 520V |
|
Voltage regulation |
± 1% |
|
Current sensing |
C.T.2.5VA cl1,secondary 1 A |
|
Voltage sensing |
95~140 volts (50/60 Hz) |
|
170~260 volts (50/60 Hz) |
|
|
340~520 volts (50/60 Hz) |
|
|
Fit for |
1000 series generator |
|
2000 series generator |
|
|
3000 series generator |
