Automatic Voltage Regulator (AVR)

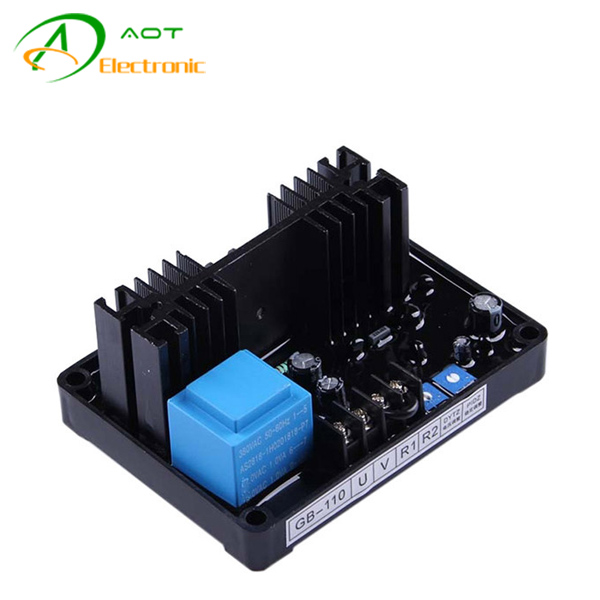

Brush Type Generator Single Phase AVR GB-110

Brush Type Generator Single Phase AVR GB-110

Model: AVR GB-110
AC Voltage: 400V
Current: 20A
Phase: Single
Product description: Generator AVR GB-110 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generat
INQUIRY

Brush Type Generator Single Phase AVR GB-110

Generator AVR GB-110 is a half-wave phase controlled Thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.

Product Name	Brush Alternator Generator AVR GB-110 Single phase 20A 400V
Sensing/Power input	Voltage	400Vac ,1 phase 2wire
Sensing/Power input	Frequency	50/60 Hz jumper selectable
Output	Voltage	20-100Vdc
Output	Shunt Current	10A
