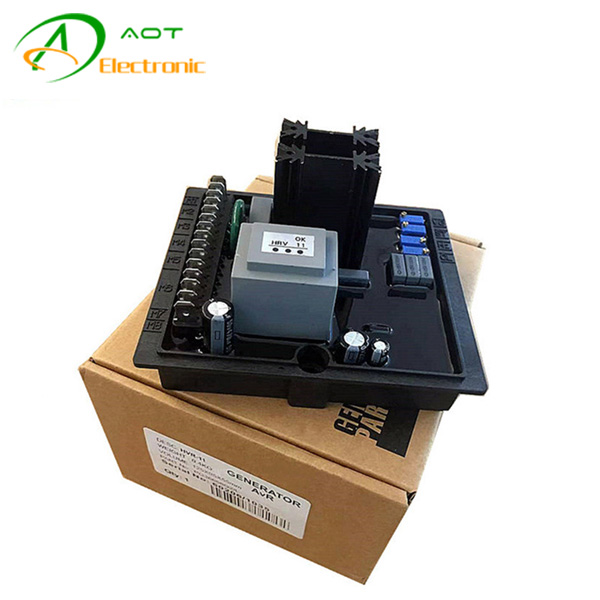

HVR-11 is made for synchronous alternators made for automatic calibration and operations.
It is equipped with an RS485 & RS232 interface for communications when necessary.
This regulator shares many of the same characteristics of the SR7 Automatic Voltage Regulator
Technical features of HVR11 LINZ Generator AVR:
|
Supply voltage inlet: a) 110Vac±15%, b) 220Vac -25%/+15% |
|
Maximum field current of LINZ AVR HVR11: 10 Adc |
|
Permanent field current of LINZ HVR11 AVR: 7 Adc |
|
Single phase reference voltage inlet of HVR11 LINZ Generator Voltage Regulator: 90Vac÷440Vac |
|
Outlet voltage setting of the alternator with multi-round trimmer |
|
Stability control setting with multi-round trimmer |
|
Intervention level setting of low frequency protection with multi-round trimmer |
|
Intervention level setting of over-exciting protection with multi-round trimmer |
|
Remote potentiometer inlet |
|
Possible operation at 50Hz or 60Hz |
|
Possible operation of alternators in parallel |
