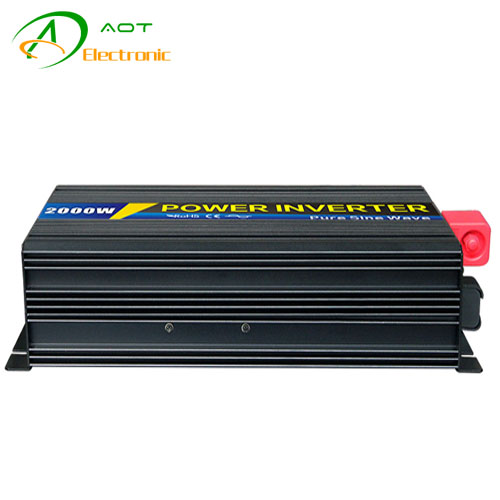

Pure Sine Wave Inverter

Pure Sine Wave Power Inverter 2000W for Home Use

Pure Sine Wave Power Inverter 2000W for Home Use

Model Number: AOT-P3000W
Brand Name: AOT
In Stock: Yes
Warranty: 1 Year
Product description: Pure sine wave power inverter 2000W for household appliances
INQUIRY

Products Description :

Pure sine wave Inverter Smart-2000W offering superior quality true sine wave power, it is designed to operate popular power tools and inductive loads. Connect Smart-2000W pure sine wave inverter with battery terminals, then you can get AC power for your appliances, the AC output waveform is even better than the power supplied by your utility.

Products Features :

- Input & output fully insolated.

- High surge: high starting surge current withstand capability for loads like fridge, camps, motors and other inductive loads.

- Grounding Protection: there is terminal in front of panel for ground connection.

- Soft start: smooth start-up of the appliances.

-Output waveform: pure sine wave power for inductive loads.

- Very stable AC output, the waveform is even better than the power supplied by your utility.

- Cooling fan works automatically when inverter becomes too hot, it turns off automatically when the temperature is reduced.

- Low total harmonic distortion: below 3%.

- Two LED indicators on the front panel showing the working and failure status.

Products Specification :

Model	SGP2000A-121	SGP2000A-122	SGP2000A-241	SGP2000A-242	SGP2000A-481	SGP2000A-482
Rated Power	2000W
Surge Power	4000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V1A
Frequency	50Hz±3or60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	1.4A		0.8A		0.3A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10℃- +50℃
NetDimension	4316.58.7cm(L×W×H)
Inner Box Dimension	45.620.612.2cm(L×W×H)
Meas./Ctn	5247.538cm/ 4pcs
N.W./Unit	5.2kg(5.7kg With Inner Box)
G.W./Ctn	24.5KGS
Packing	Colour box
Warranty	2Years
