Pure Sine Wave Inverter

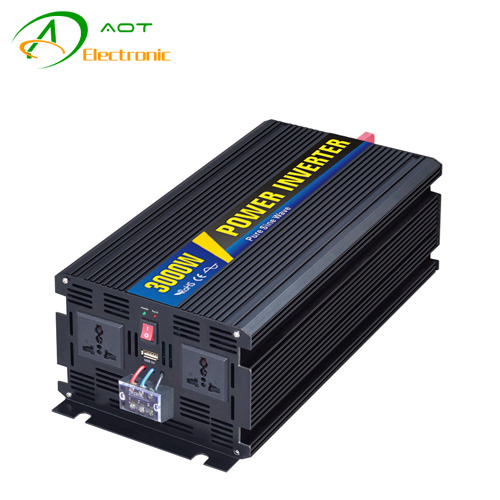

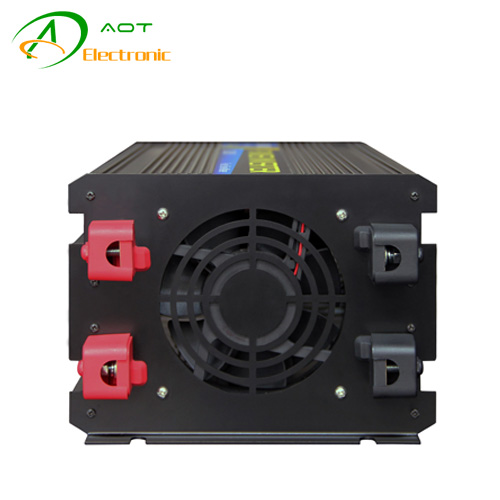

Pure Sine Wave Power Inverter 3000W

Model Number: AOT-P3000W
Brand Name: AOT
In Stock: Yes
Warranty: 1 Year
Product description: Pure sine wave power inverter 3000W for household appliance
INQUIRY

PURE SINE WAVE Inverter 3000w

Products Description :
Pure sine wave inverter Smart-3000W offering superior quality true sine wave power, it is designed to operate popular power tools and inductive loads. Connect Smart-3000W pure sine wave inverter with battery terminals, then you can get AC power for your appliances, the AC output waveform is even better than the power supplied by your utility.
Products Features :
- Input & output fully insolated.
- High surge: high starting surge current withstand capability for loads like fridge, camps, motors and other inductive loads.
- Soft start: smooth start-up of the appliances.
-Output waveform: pure sine wave power for inductive loads.
- Very stable AC output, the waveform is even better than the power supplied by your utility.
- Cooling fan works automatically when inverter becomes too hot, it turns off automatically when the temperature is reduced.

- Low total harmonic distortion: below 3%.

Products Specification

Model	SGP3000A-121	SGP3000A-122	SGP3000A-241	SGP3000A-242	SGP3000A-481	SGP3000A-482
Rated Power	3000W
Surge Power	6000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	2A		0.9A		0.5A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10℃ - +50℃
Net Dimension	4121.615.6cm (L×W×H)
Meas./Ctn	52.531.525cm / 1pcs
N.W./Unit	9kg
G.W./Ctn	11KGS
Packing	Honeycomb carton
Warranty	2 Years
